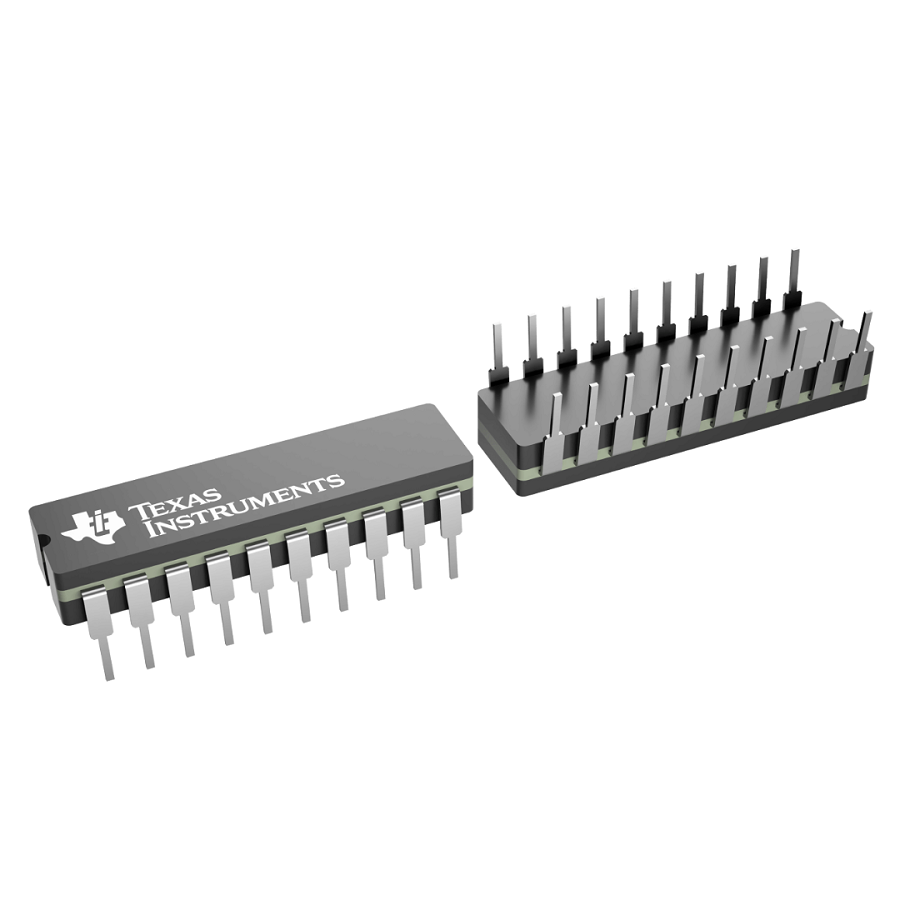

SN54LS244J
Manufacturer:
Texas Instruments
Mfr.Part #:
SN54LS244J
Datasheet:
Description:
Buffers, Drivers, Resceivers and Transceivers CDIP-20 Through Hole Single-Ended 3-State
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| Number of Elements | 2 |
| Output Type | 3-State |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Operating Supply Current | 46 mA |
| Propagation Delay | 30 ns |
| High Level Output Current | -12 mA |
| Low Level Output Current | 12 mA |
| Number of Bits per Element | 2 |
| Number of Input Lines | 8 |
| Number of Output Lines | 8 |
| Input Type | Single-Ended |
Stock: 33
Distributors
pcbx
pcbxUnit Price$11.08272
Ext.Price$11.08272
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $11.08272 | $11.08272 |
| 10 | $10.55059 | $105.50590 |
| 25 | $9.97626 | $249.40650 |
| 50 | $9.43319 | $471.65950 |
| 100 | $8.91954 | $891.95400 |
